Composite Vessel Design Software
Cylinder designs can include all of the standard winding patterns such as circumferential (hoop), helical, transitional as well as custom defined layers and programs. It is also possible to create winding programs for either standard axis-symmetric geometries like tubes, vessels and cones, or complex non-axis symmetric geometries.
Final designs can be exported to any Finite Element Analysis (FEA) program so that its mechanical properties can be analyzed before exporting the design to the filament winding machine.
WindingExpertnew

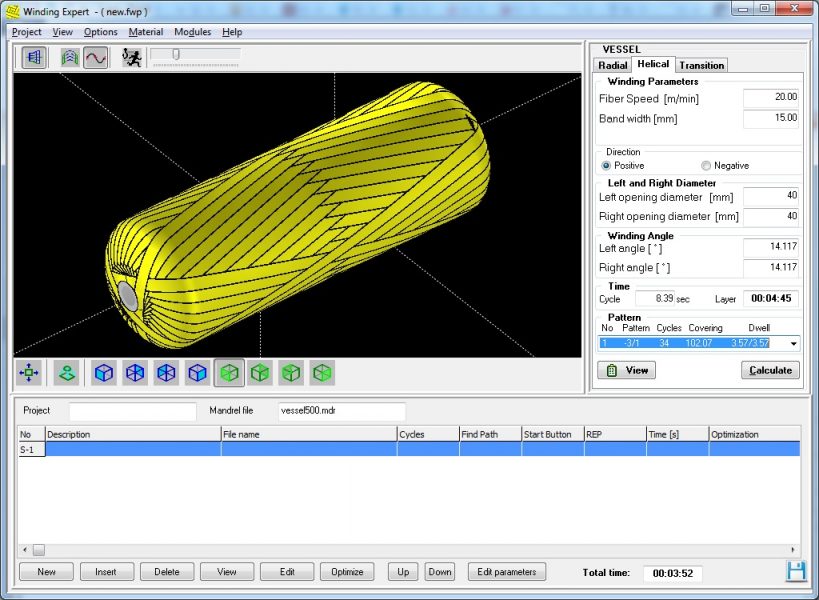

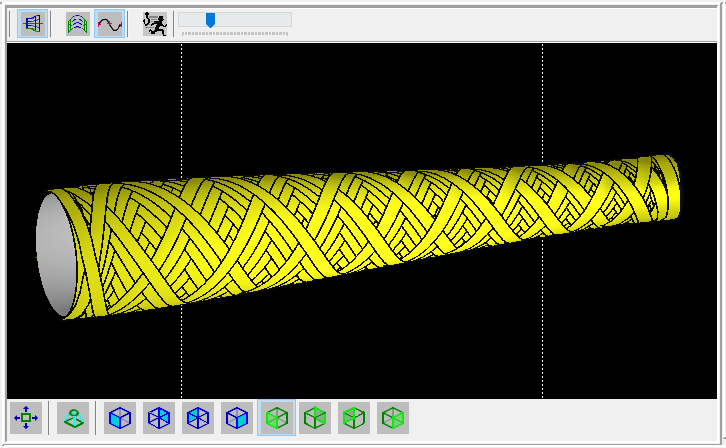

Winding Expert Helical Winding

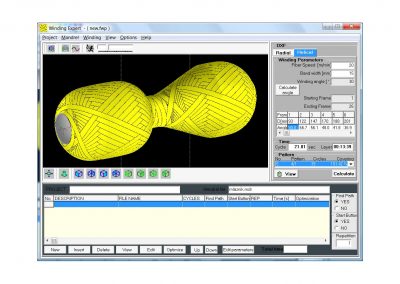

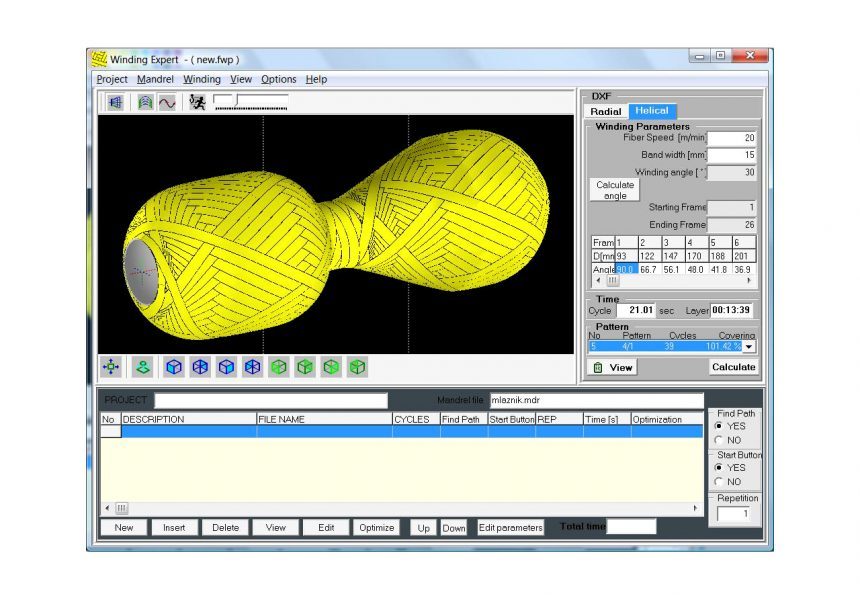

WINDING EXPERT big
Winding Expert Helical Winding

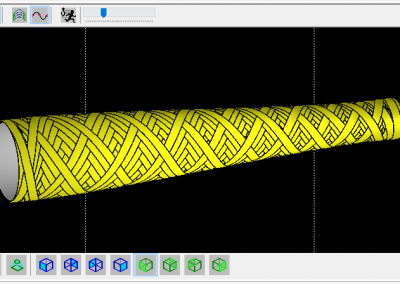

Helical Winding
Winding Expert Helical Winding

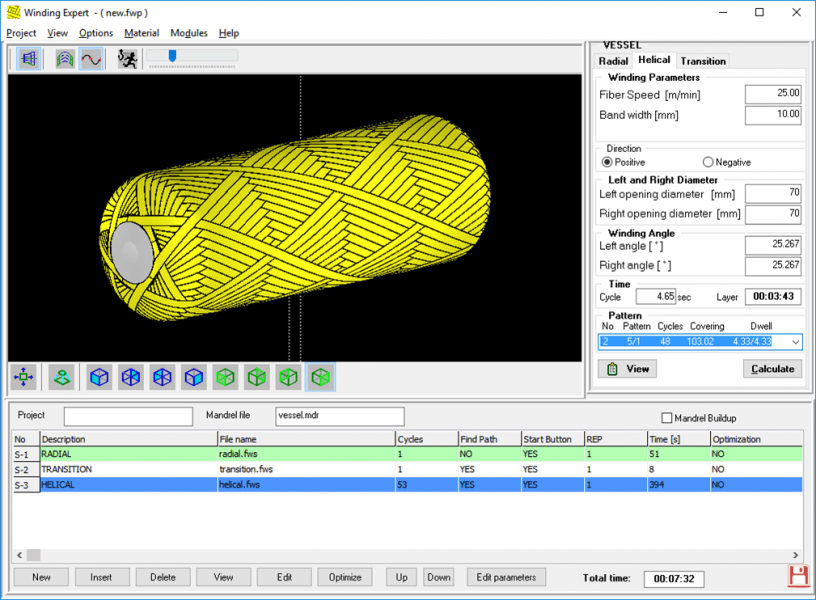

Winding Expert Main Screen

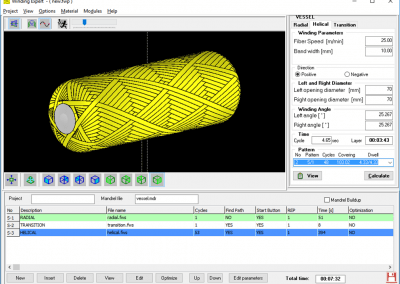

Winding Expert Main Screen
Composite Vessel Design Software

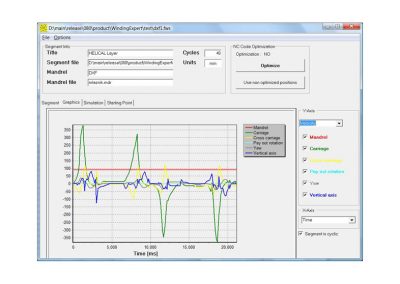

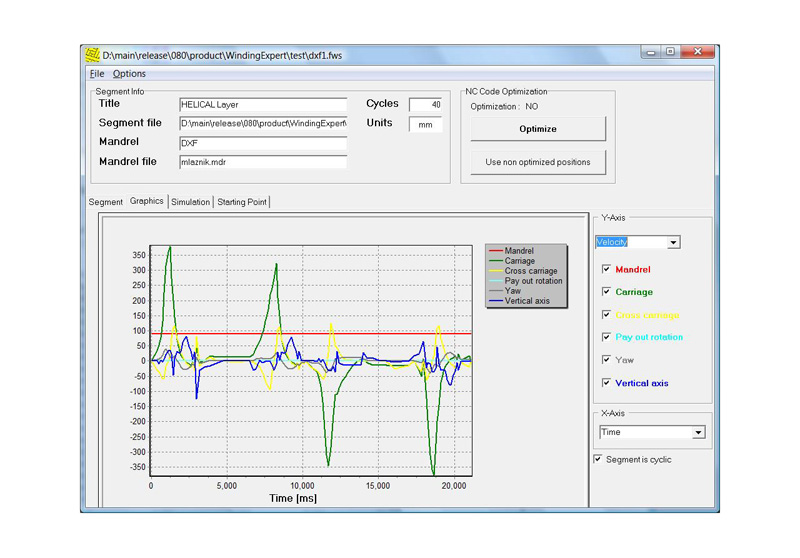

Winding Expert Screen Shot
Composite Vessel Design Software
Winding ExpertTM is Mikrosam’s in-house developed software solution for creating, editing and simulating filament winding programs. It is user friendly software which allows the composite designer flexibility to create winding programs that will completely fulfill the product requirements. It has the possibility for circumferential (hoop), helical, transitional and other custom defined winding layers and programs. Features for winding path simulation and winding pattern simulation provide the designer with powerful tool for easy and precise creation of the composite parts using filament winding technology.
Winding Expert has a module for export of all necessary data to any Finite Element Analysis (FEA) program, which is necessary for the calculation and analysis of the mechanical properties of the filament winded products.
In Winding Expert there is possibility to create winding programs either for standard axis-symmetric geometries like tubes, vessels and cones, or to import CAD mandrel data from any popular CAD program for complex non-axis symmetric geometries.
Winding Expert comes with Multilanguage interface.
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

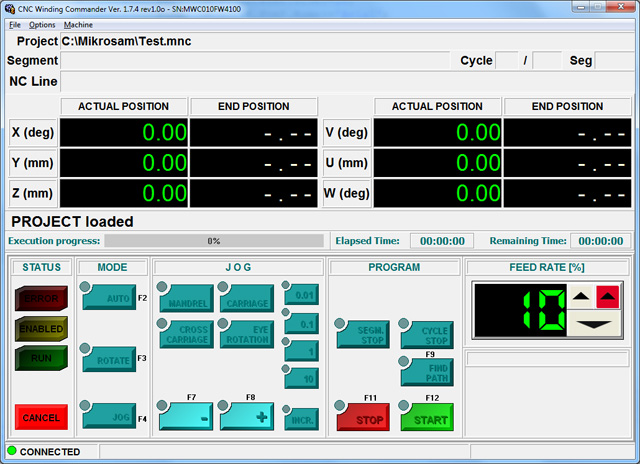

Winding CommanderTM is specially designed control software for our series of Filament Winding machines. PC based system with latest class CPU running under Windows operating system work parallel with dedicated DSP for smooth, fast and accurate winding process of unlimited program length.
Mikrosam’s Winding Commander control application is the most advanced and feature rich control application for filament winding machines. With the unique graphic interface is easy to learn and operate.
Advanced integrated smoothing function significantly improves dynamics at high productivity rates.
An integrated safety function gives opportunity to resume interrupted winding process from Power Failure or Emergency Stop situations.
Flexible with any machine configuration is ready to meet your challenges even in the most demanding filament winding applications.
Winding Commander comes with multilanguage interface.
Request a live demo of the vessel design software — see your tank geometry programmed and simulated before you commit. Contact us to schedule a demo.
Vessel Tank Design Software for Filament Winding
Unlike ASME metal pressure-vessel calculation tools, Mikrosam's software is built specifically for composite vessels: it designs the laminate and generates the winding program — hoop, helical, and transitional patterns, plus custom-defined layers — for Type 4 and Type 5 tanks, tubes, cones, and even non-axisymmetric geometries. Programs execute directly on Mikrosam machines through Winding Commander.
Vessel Modeling, Simulation & FEA Export
Model the geometry, simulate the complete winding pattern before any fiber is placed, and export finished designs to any finite element analysis (FEA) package to verify mechanical properties. Designs can also be imported from common cylinder-design and CAD programs, so existing engineering work carries over.
Common Questions
Does it handle Type 4 and Type 5 hydrogen tanks? Yes — polymer-lined Type 4 and linerless Type 5 designs, including dome winding patterns, are core use cases.
Can I try it before buying a machine? Yes — pair a software evaluation with a winding trial on the Mikrosam towpreg winder at Wichita State's NIAR lab and prove the full design-to-part workflow. Contact us to arrange it.
