CFW 300-1200 Production Line

Compact & Efficient
3

Modular CFW 300-1200 Production Line

Technobell‘s modular CFW 300-1200 production line is a compact, yet powerful solution designed for GRP pipe diameters DN 300–1200. Despite its smaller size, it competes with larger continuous filament winding production lines in performance. The CFW 300-1200 production line boasts a compact design, perfectly stackable within containers without the need for extensive disassembling. This feature ensures a swift and hassle-free assembly and disassembly process, allowing easy mobility to alternate production sites whenever required. The CFW 300-1200 production line delivers performance comparable to larger setups (CFW 300-2600, CFW 300-3000, CFW 400-4000) making it an excellent addition to existing facilities or a perfect starting point for new projects.

In addition to production equipment, Technobell also provides state-of-the-art auxiliary machines, custom-made to support various functions in the production process, and laboratory and testing equipment integrated with advanced computer software programs.

EQUIPMENT MAIN FEATURES
  • Fast assembly / Disassembly
  • High production speed
  • Online connectivity
  • Low power consumption
  • Low raw material consumption

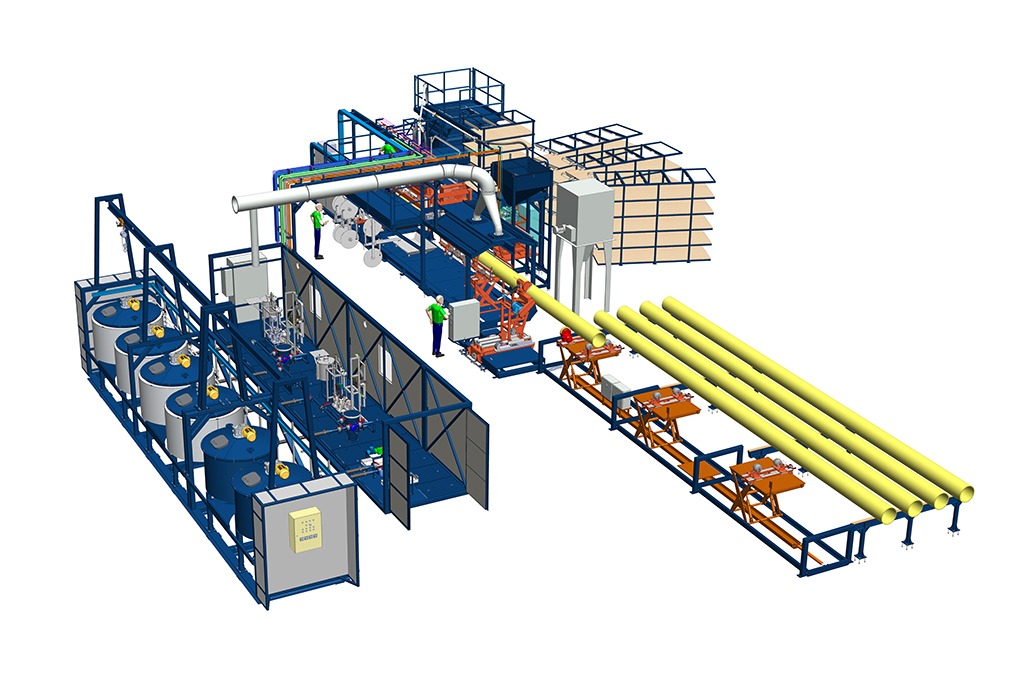

CFW 1200 Production Line Layout
MAIN SPECIFICATIONS
  • Production speed: up to 60 m/h
  • Yearly output: 200 km
  • Installed power: 300 kW
  • Average power consumption: 150 kW
  • Air / water supply: 8 / 0.1 m3/h
  • Covered area requirement: 2,000 m2
  • Recommended storage area: 10,000 m2

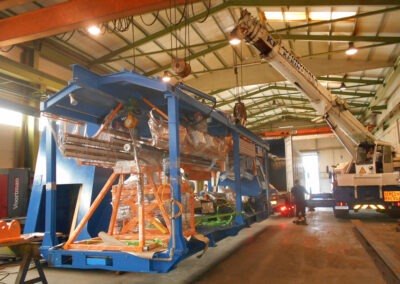

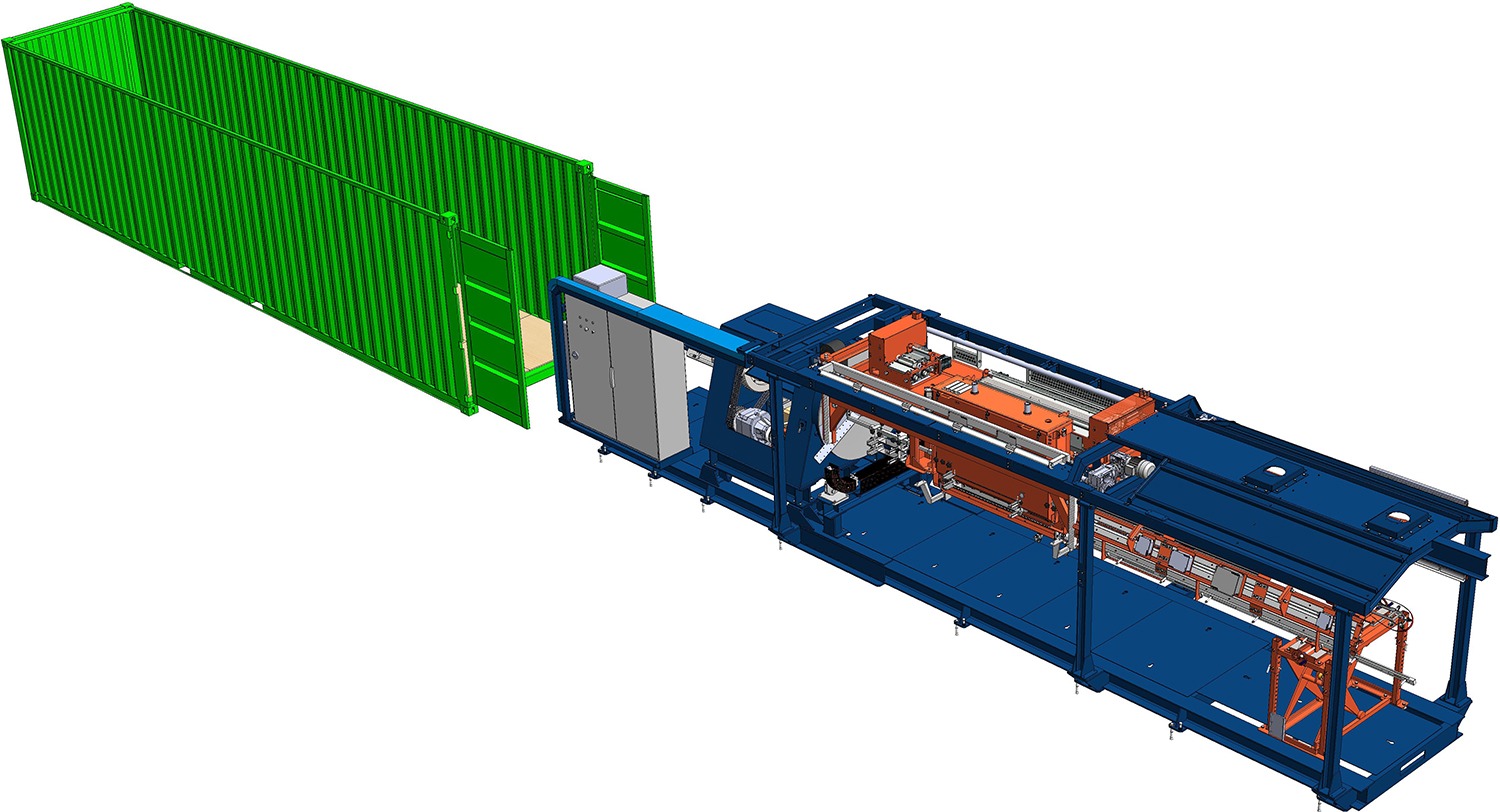

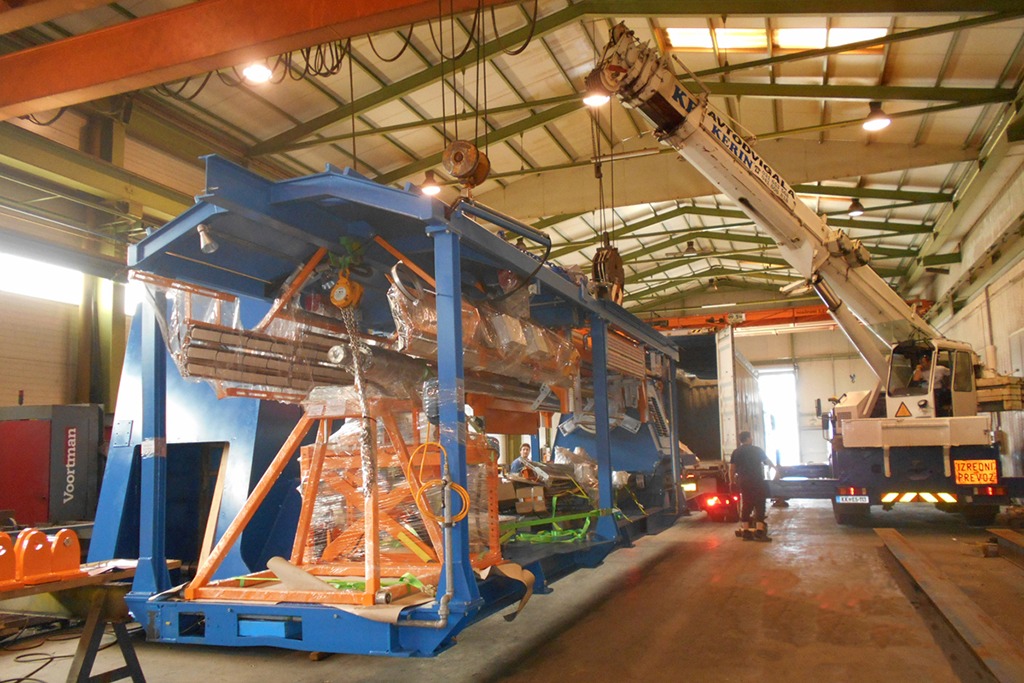

CFW1200 Modular Main Structure
